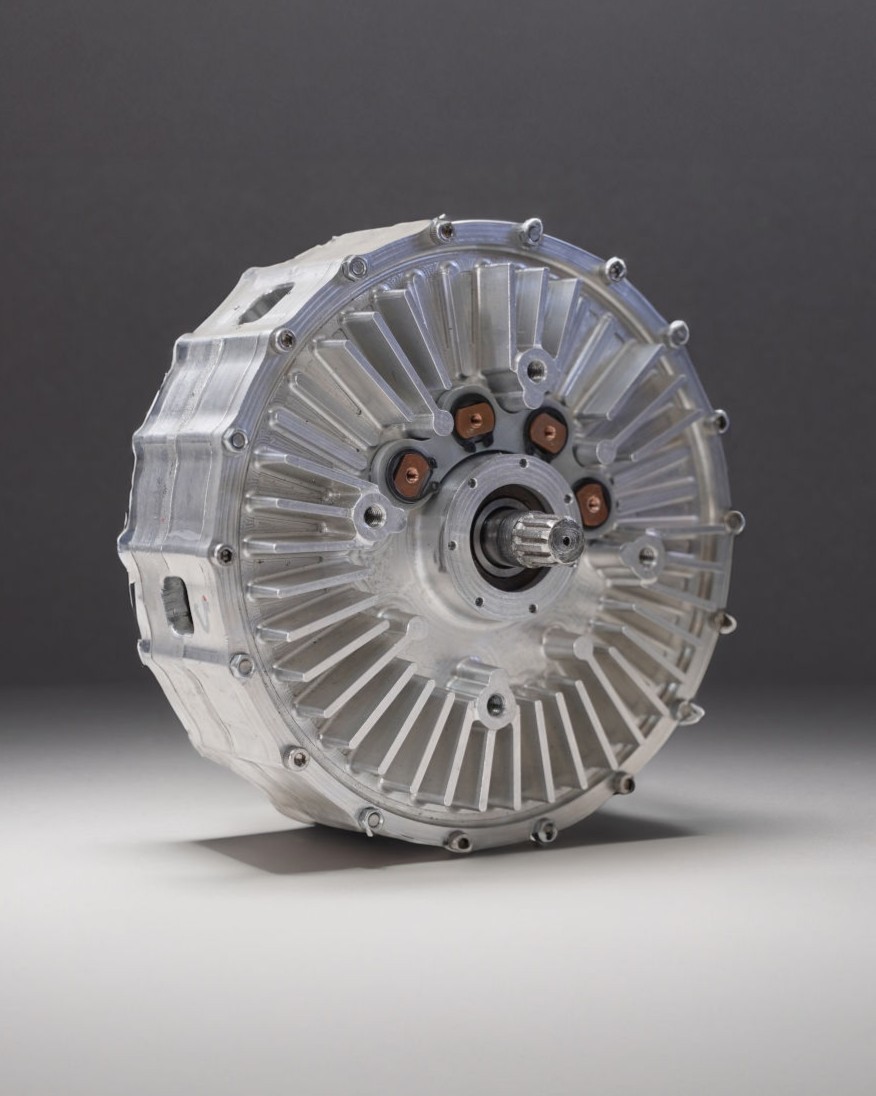

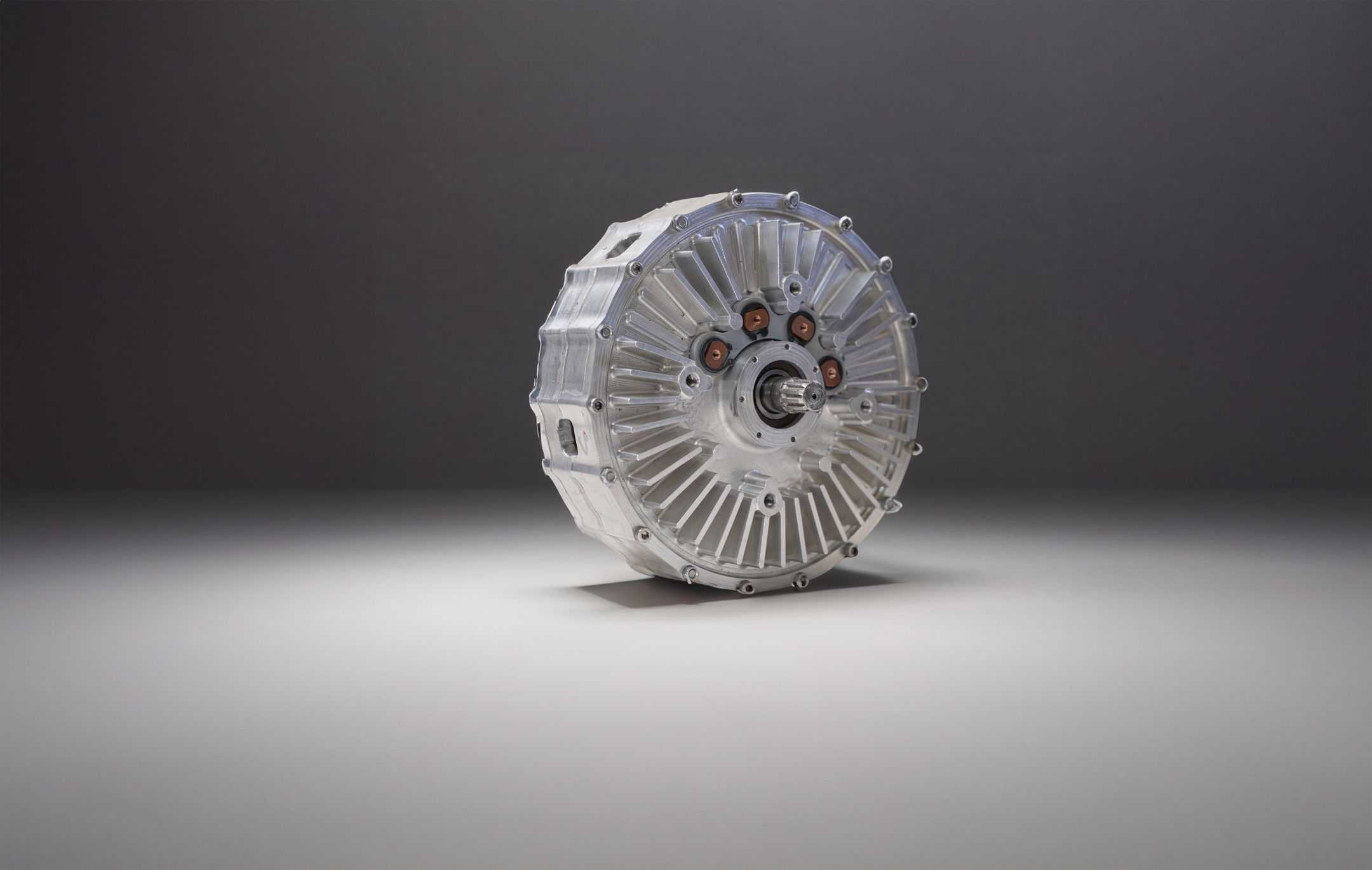

WX 90-A
KEY FEATURES
Engineered for exceptional power density and efficiency
✓ Torque Density: Axial flux Motor delivering up to 19 Nm of peak torque.
✓ Protection: Dust and water protected up to IP69.
✓ Mounting System: Adaptable shaft connection and mounting pattern.
SPECIFICATIONS
Air Cooled
Motor speed:
3000 - 6000 rpm
Continuous Torque:
12 - 22.3 Nm
Peak Torque:
42 Nm
Continuous Power:
5.5 - 8.8 kW
Motor Voltage:
48 - 96 VDC

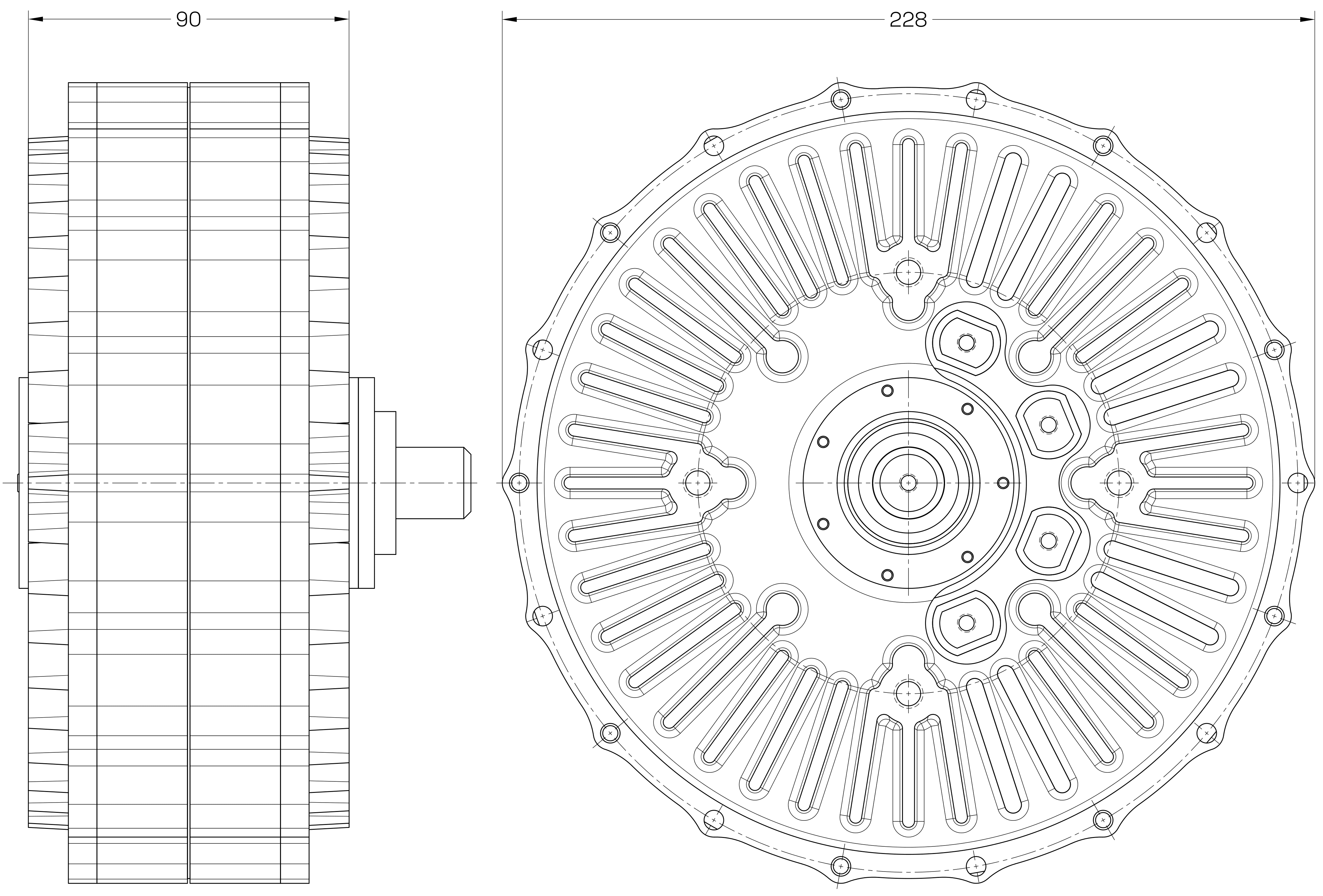

Diameter:
228 mm
Axial Height:
90 mm
Optimised for the most demanding torque-dense applications, the WX 90-A delivers powerful and reliable performance. Its advanced air-cooling system provides exceptional thermal stability, enabling a prolonged duty cycle under heavy, continuous loads. This robust design makes the WX 90-A the ideal, low-maintenance solution for industrial operations requiring sustained, high-torque output.
Annoyed by sales teams?

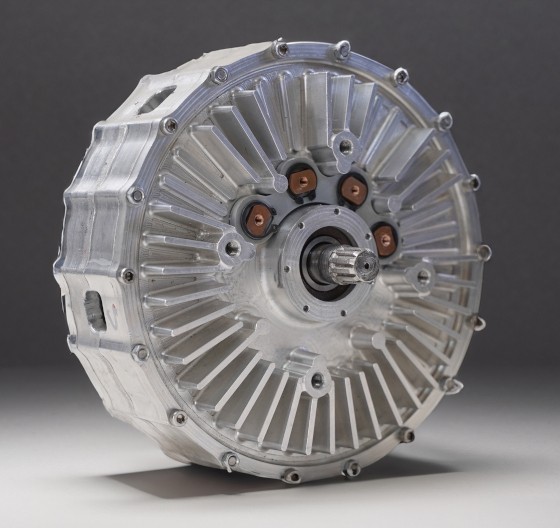

WX 90-W
KEY FEATURES
Engineered for compactness, minimising energy losses and heat generation.
✓ Torque Density: Axial Flux Motor delivering up to 23 Nm of peak torque.
✓ Protection: Dust and water protected up to IP69.
✓ Mounting System: Adaptable shaft connection and mounting pattern.
SPECIFICATIONS
Water Cooled
Motor speed:
3000 - 6000 rpm
Continuous Torque:
20.6 - 28.1 Nm
Peak Torque:
44 Nm
Continuous Power:
6.9 - 15.1 kW
Motor Voltage:
48 - 96 VDC
Diameter:
228 mm
Axial Height:
90 mm
The WX 90-W is our water-cooled Axial Flux Motor designed for applications requiring sustained high performance and thermal stability. With peak torque output of up to 28 Nm, its integrated liquid cooling system enables continuous operation under demanding load conditions, ideal for environments where heat management and consistent output are critical.
Annoyed by sales teams?

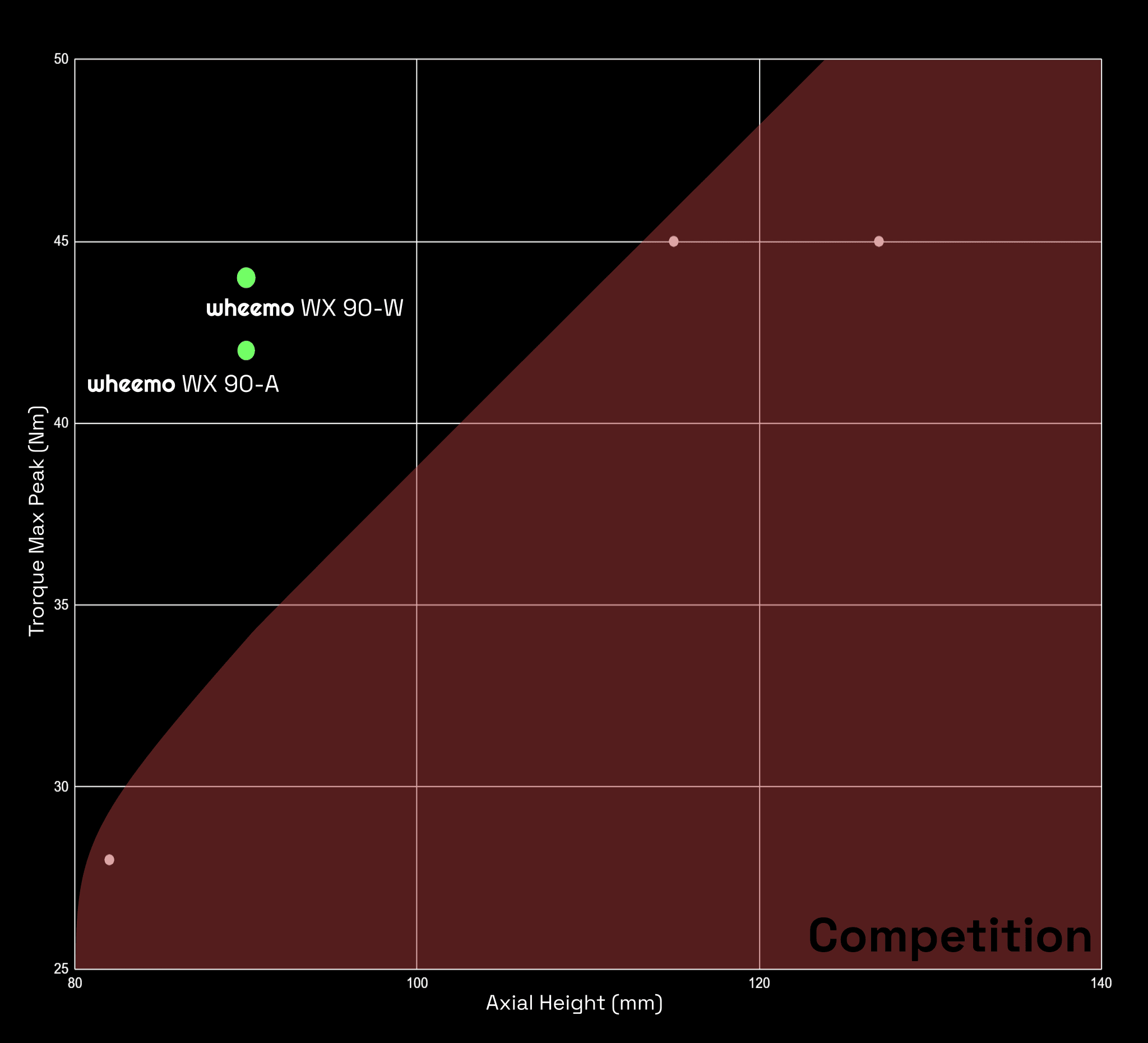

How do we compare?
WX 90 Applications
You may also be interested

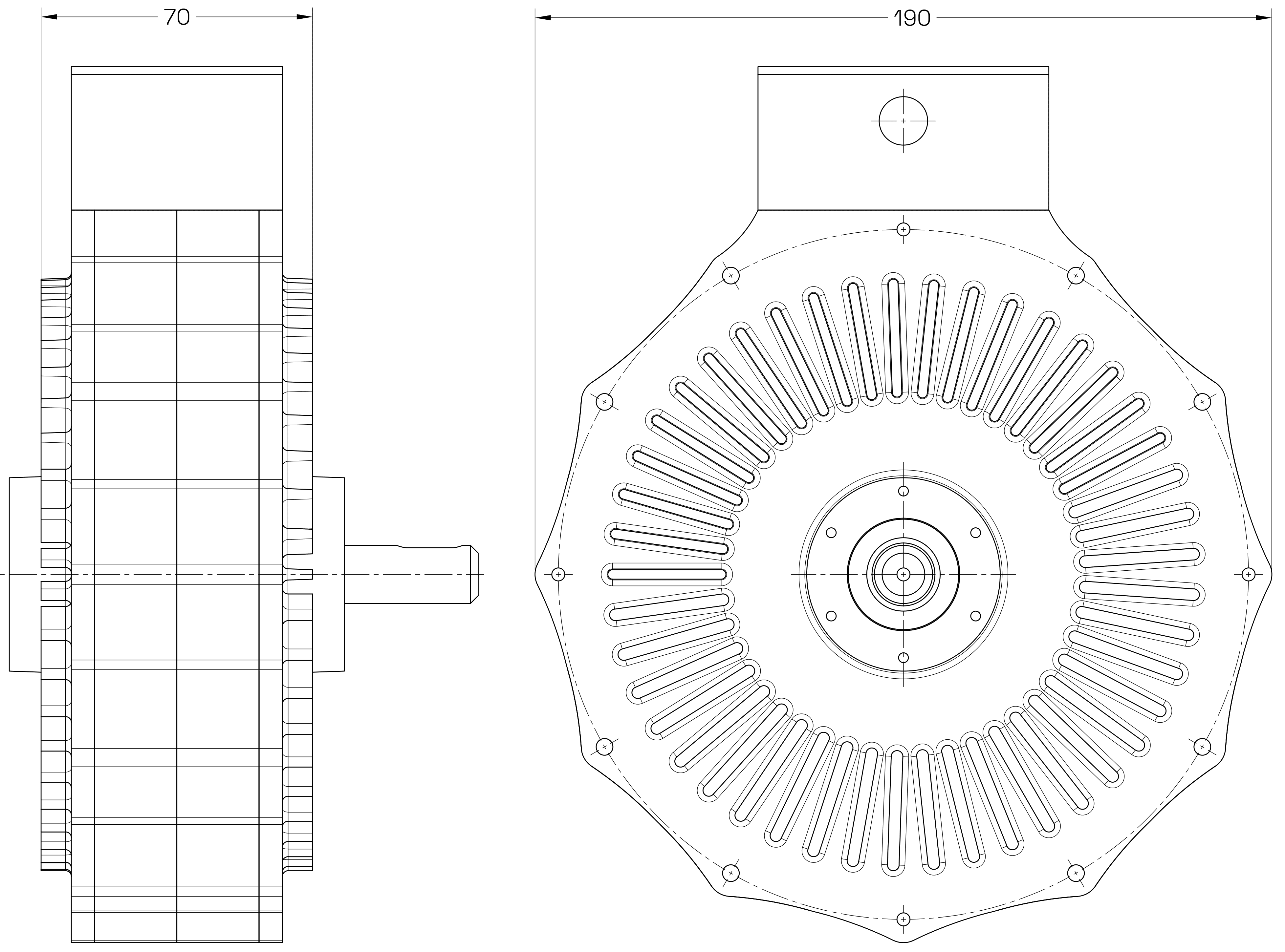

WX 70
Ideal where space is tight
✓ High-performance brushless synchronous Axial Flux Motor technology.
✓ Designed to deliver outstanding power density and efficiency.
70 mm axial height
Torque Range: 3-23 Nm
Air or Water Cooled
Max Speed: 3000 rpm
All motors were designed using
