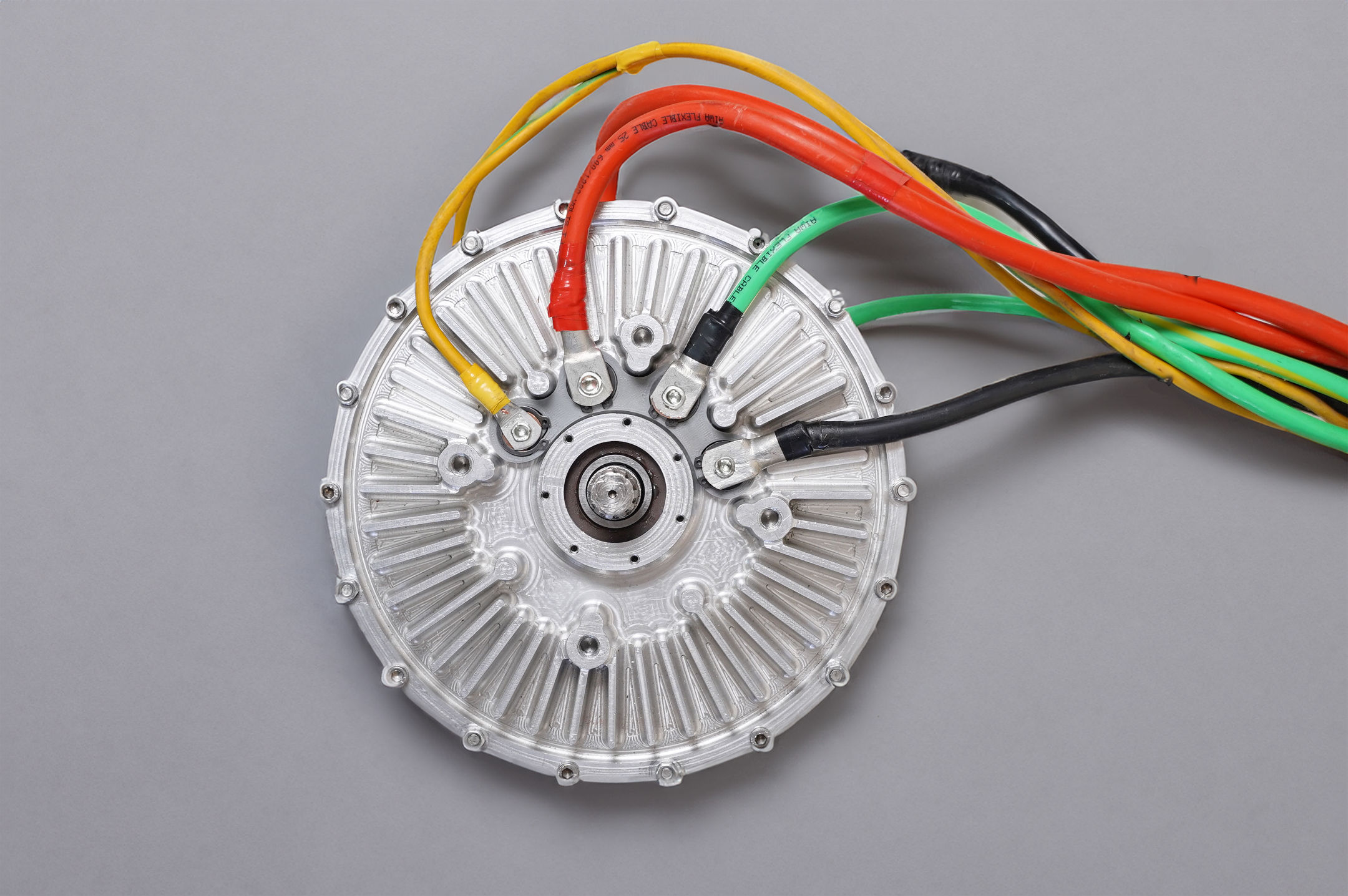

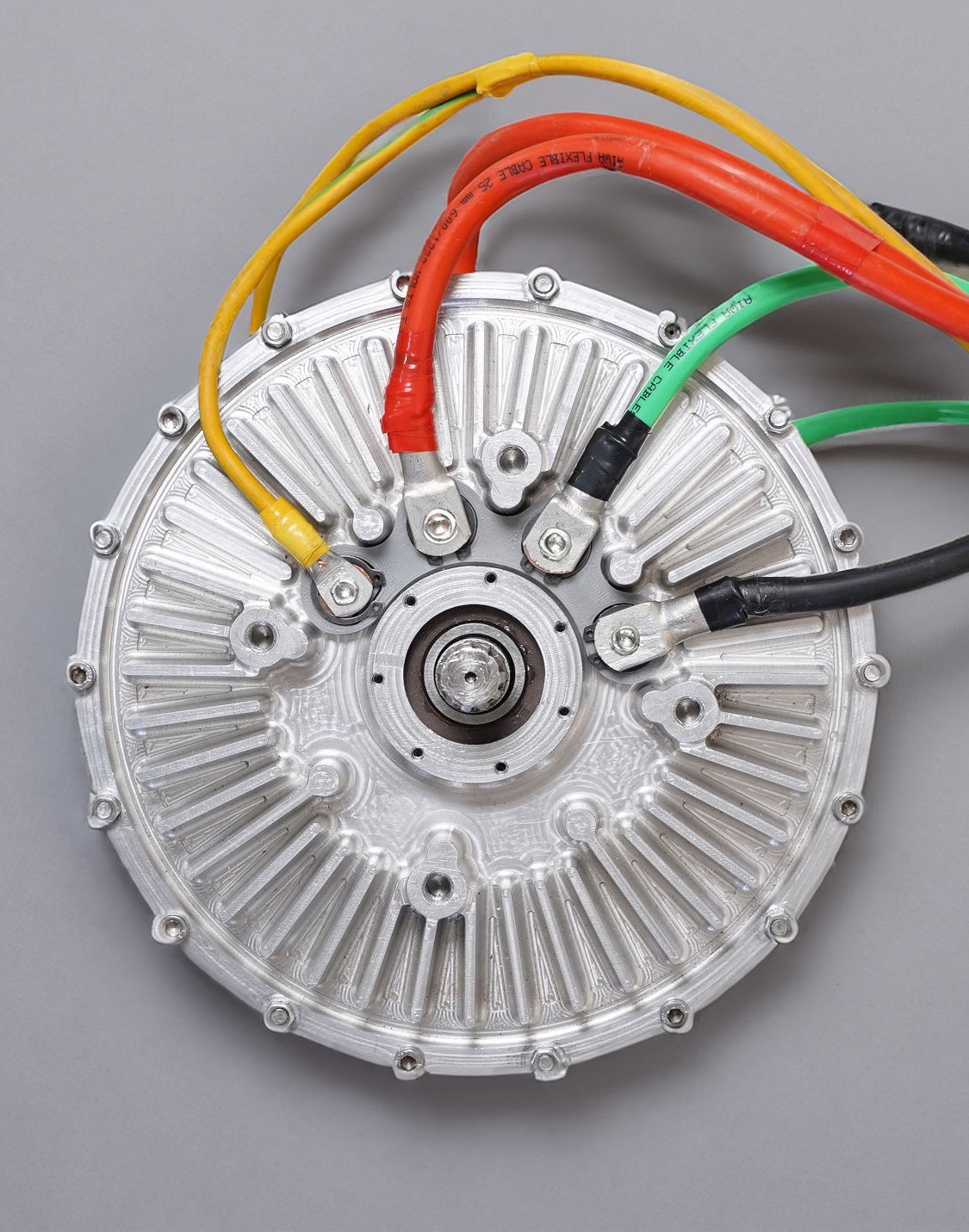

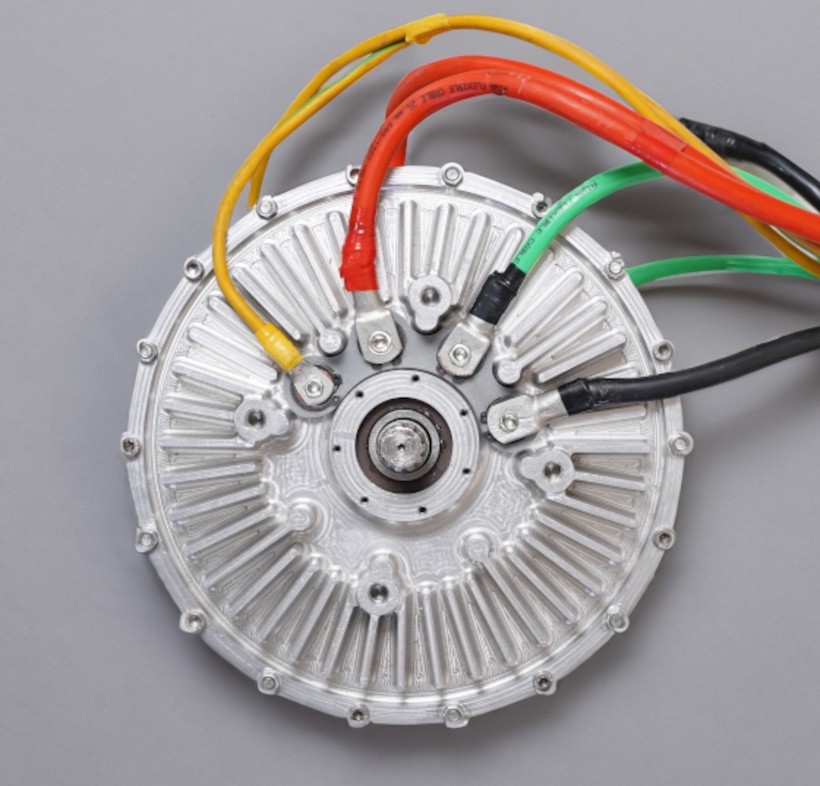

WX 70-A
KEY FEATURES
Engineered for compactness, minimising energy losses and heat generation.
✓ Compact: 30% more compact than other off-the-shelve solutions.
✓ Protection: Dust and water protected up to IP69.
✓ Mounting System: Adaptable shaft connection and mounting pattern.
SPECIFICATIONS
Air Cooled
Motor speed:
3000 - 6000 rpm
Continuous Torque:
3.4 - 7.5 Nm
Peak Torque:
20 Nm
Continuous Power:
1.8 - 2.5 kW
Motor Voltage:
48 - 96 VDC

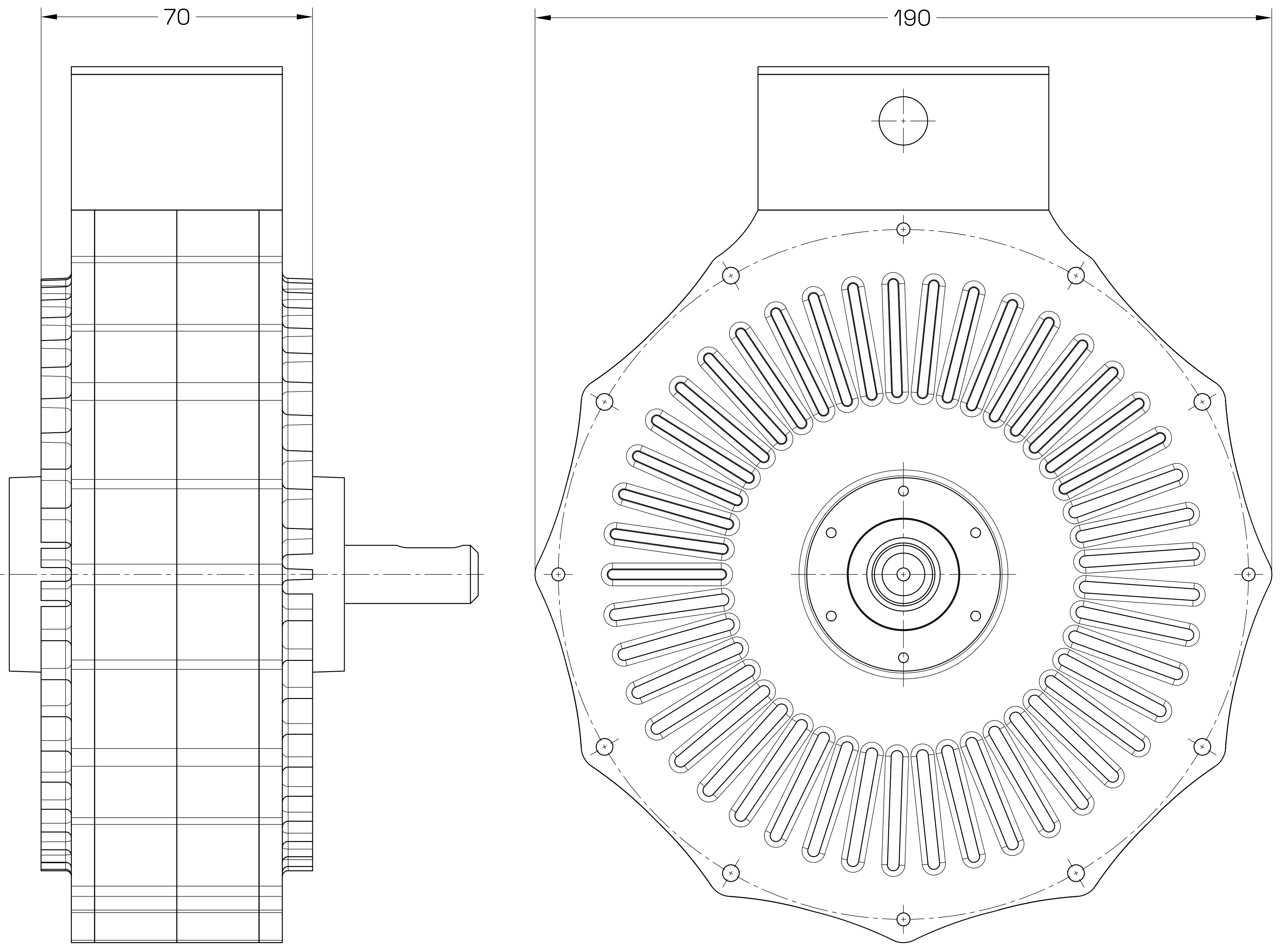

Diameter:
190 mm
Axial Height:
70 mm
The WX 70-A, in its air-cooled configuration, offers reliable performance and efficient thermal management. With an extended duty cycle, it is well-suited for continuous use across various industrial and commercial applications. Its air-cooling system ensures stable operation without the need for water cooling.
Annoyed by sales teams?
WX 70-W
KEY FEATURES
Engineered for compactness, minimising energy losses and heat generation.
✓ Compact: 30% more compact than other off-the-shelve solutions.
✓ Protection: Dust and water protected up to IP69.
✓ Mounting System: Adaptable shaft connection and mounting pattern.
SPECIFICATIONS
Water Cooled
Motor speed:
3000 - 6000 rpm
Continuous Torque:
6.2 - 9.5 Nm
Peak Torque:
23 Nm
Continuous Power:
2.4 - 4.5 kW
Motor Voltage:
48 - 96 VDC
Diameter:
190 mm
Axial Height:
70 mm
The WX 70-W, equipped with a glycol water-cooling system, delivers enhanced performance and superior thermal stability. Designed for continuous and demanding use, it offers a longer duty cycle and improved efficiency. The closed-loop cooling system ensures consistent operation, even in high-load or high-temperature environments.
Annoyed by sales teams?

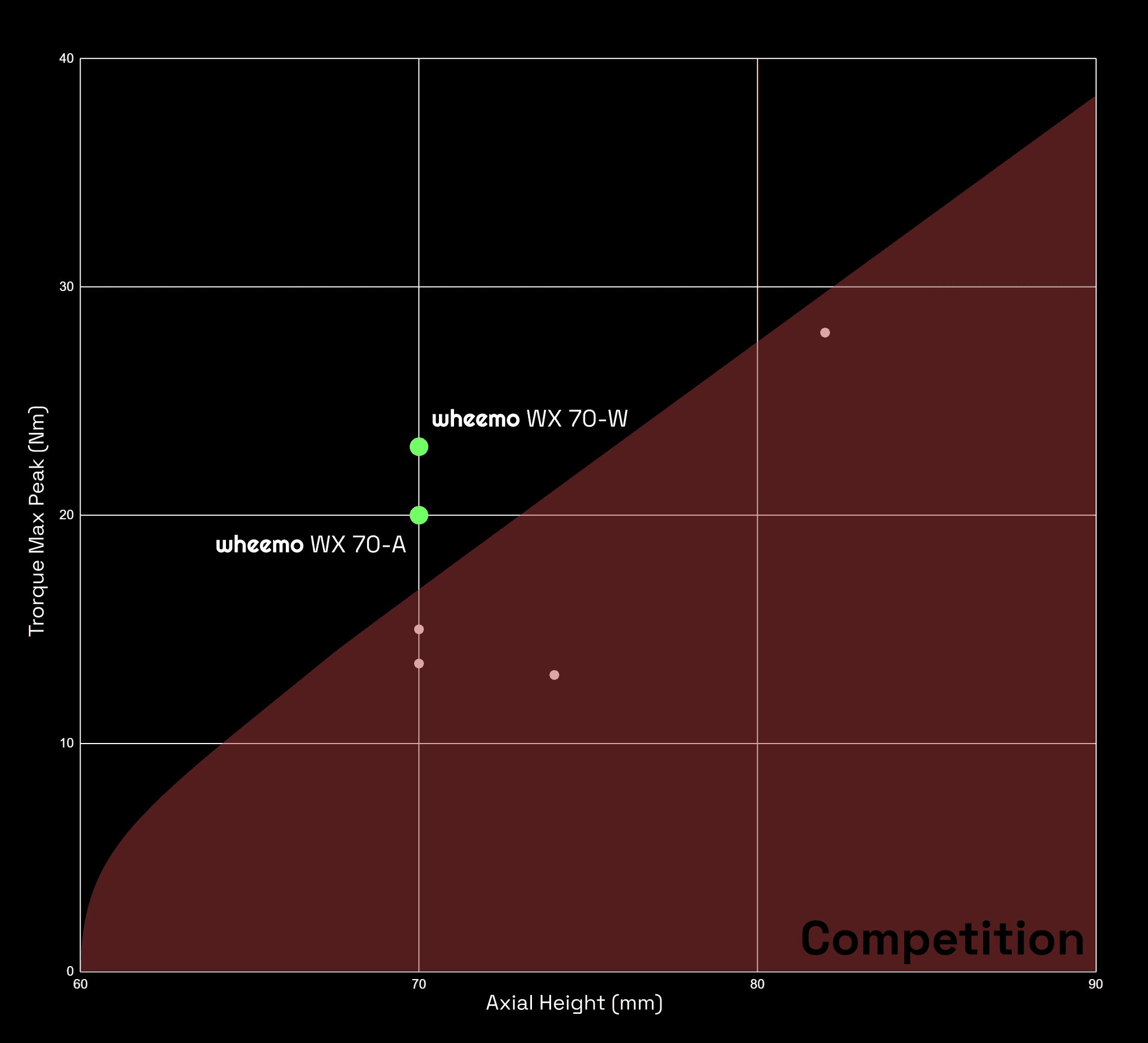

How do we compare?
WX 70 Applications
You may also be interested
WX 90
Ideal for torque applications

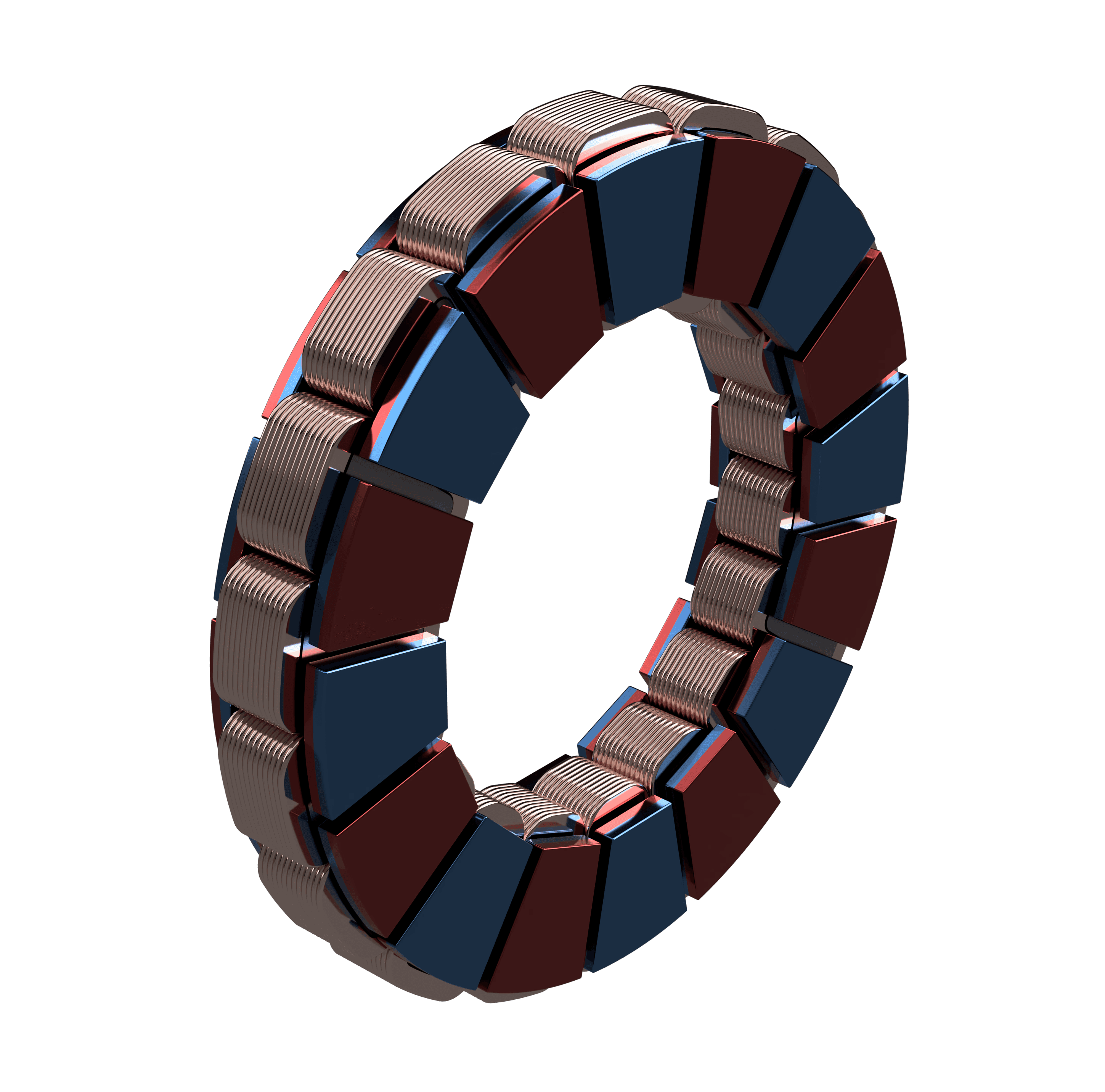

✓ High-performance brushless synchronous Axial Flux Motor technology.
✓ Engineered for exceptional power density and efficiency.
90 mm axial height
Torque Range: 5-44 Nm
Air or Water Cooled
Max Speed: 3000 rpm
All motors were designed using
WheemX™
