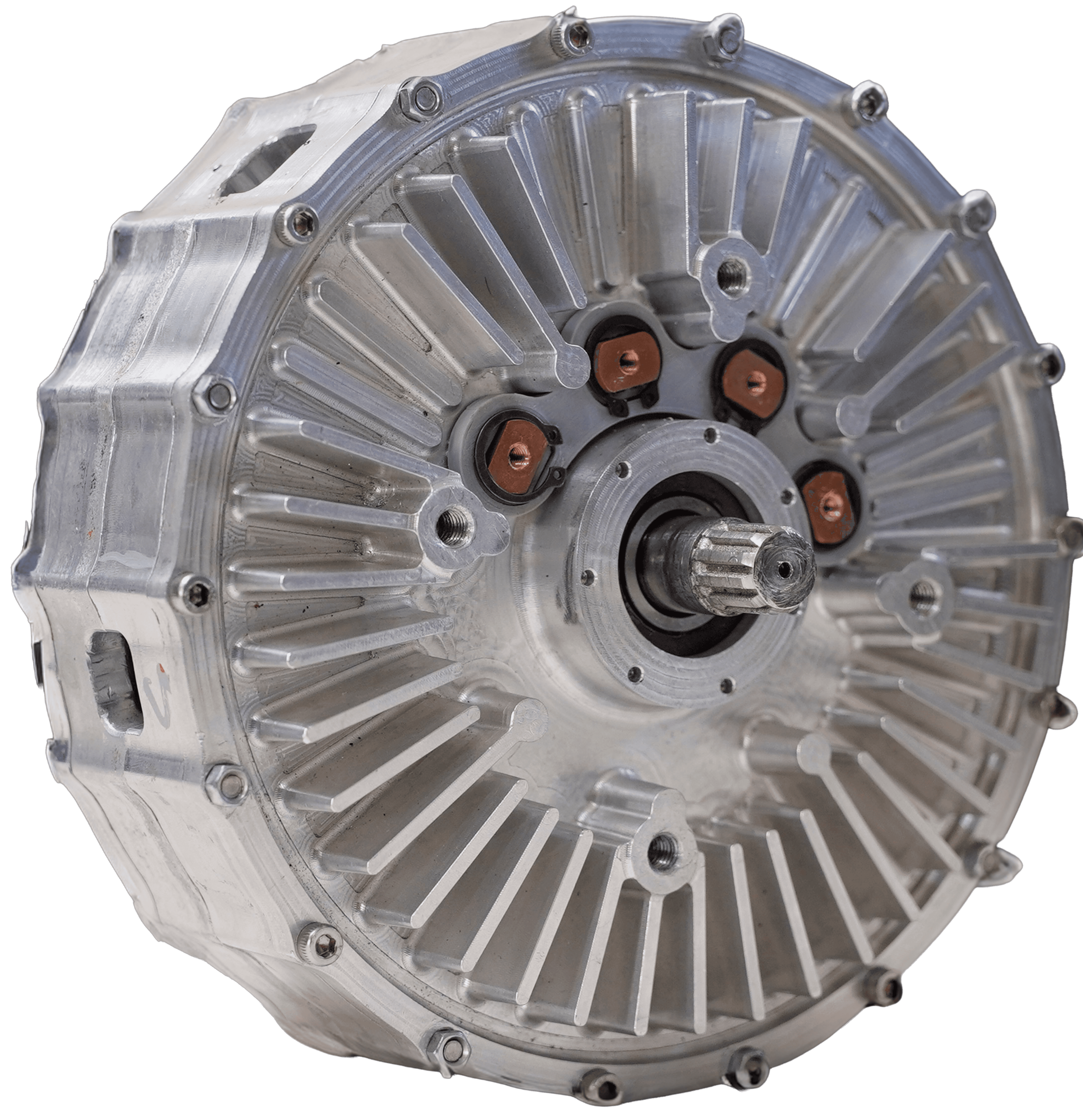

WX 70-W
KEY FEATURES
Engineered for compactness, minimising energy losses and heat generation.
✓ Compact: 30% more compact than other off-the-shelve solutions.
✓ Protection: Dust and water protected up to IP69.
✓ Mounting System: Adaptable shaft connection and mounting pattern.
Water Cooled
Motor speed:
3000 - 6000 rpm
Continuous Torque:
6.2 - 9.5 Nm
Peak Torque:
23 Nm
Continuous Power:
2.4 - 4.5 kW
Motor Voltage:
48 - 96 VDC
Diameter:
190 mm
Axial Height:
70 mm
The WX 70-W, equipped with a glycol water-cooling system, delivers enhanced performance and superior thermal stability. Designed for continuous and demanding use, it offers a longer duty cycle and improved efficiency. The closed-loop cooling system ensures consistent operation, even in high-load or high-temperature environments.
