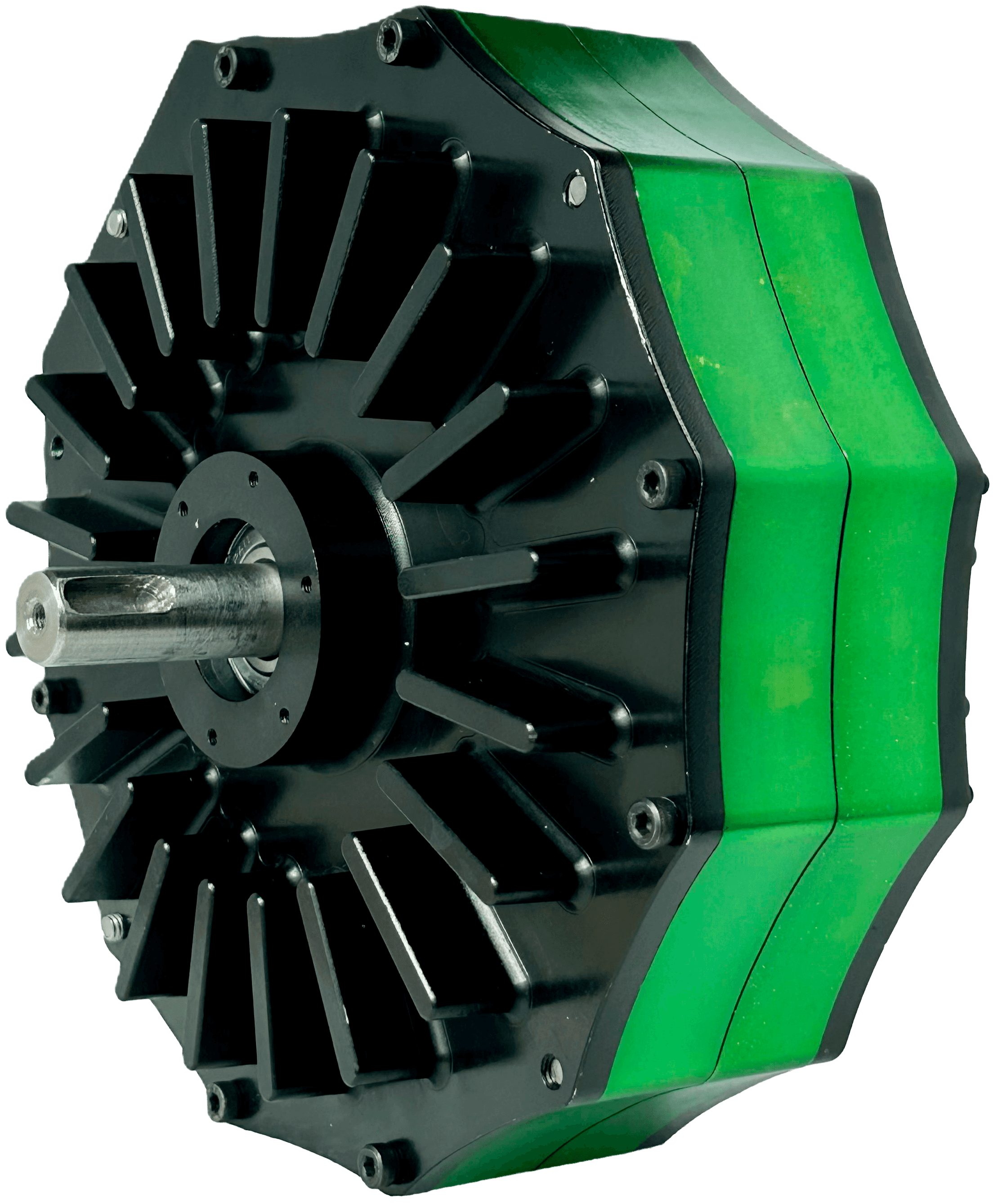

WX 70-A
KEY FEATURES
Engineered for compactness, minimising energy losses and heat generation.
✓ Compact: 30% more compact than other off-the-shelve solutions.
✓ Protection: Dust and water protected up to IP69.
✓ Mounting System: Adaptable shaft connection and mounting pattern.
Air Cooled
Motor speed:
3000 - 6000 rpm
Continuous Torque:
3.4 - 7.5 Nm
Peak Torque:
20 Nm
Continuous Power:
1.8 - 2.5 kW
Motor Voltage:
48 - 96 VDC
Diameter:
190 mm
Axial Height:
70 mm
The WX 70-A, in its air-cooled configuration, offers reliable performance and efficient thermal management. With an extended duty cycle, it is well-suited for continuous use across various industrial and commercial applications. Its air-cooling system ensures stable operation without the need for water cooling.
