Axial flux motor system

WX MINI.

Tiny motors, high torque

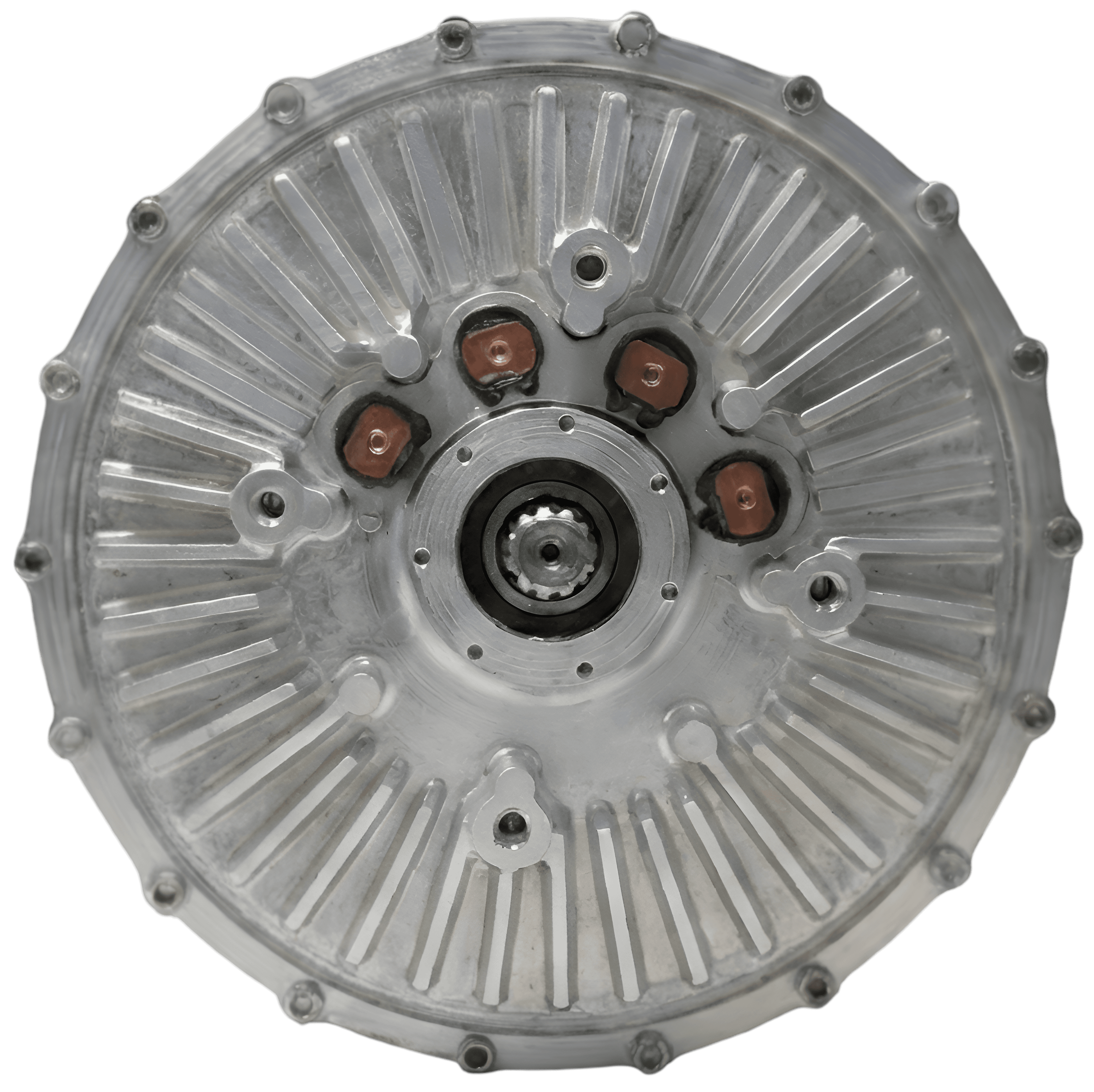

motor with housing, sensors, and interfaces

The WX Mini series is engineered to deliver maximum torque density in a micro-sized package. By compressing high-performance axial flux technology into an ultra-compact footprint, these motors allow for seamless integration into tight spaces where standard motors simply cannot fit.

series Overview

series Overview

MOTOR TYPE:

Brushless synchronous axial flux motor

INTEGRATION:

Fully integrated system

DRIVE COMPATIBILITY:

Standard 3-phase motor controllers

INGRESS PROTECTION:

IP67 capable

SENSORS:

Built-in absolute position and temperature sensors

TORQUE RANGE:

From 0.1 Nm to 5 Nm continuous

APPLICATIONS:

Robotics
Industrial automation

HIGHLIGHT:

Incredibly torque dense

AVAILABILITY:

From Q4 2026

WX Mini motors are fully integrated systemS

Each WX Mini motor features a built-in absolute position sensor, enabling highly accurate position measurement directly inside the unit, with no external sensor integration required. This creates a compact all-in-one solution that reduces wiring, simplifies installation, and lowers overall integration complexity.

WxM-69x35

Our first mini motor prototype is currently in advanced in-house testing, where it is already delivering reliable performance data.

SPECIFICATIONS

SPECS

Outer Diameter:

69.0 mm

Axial Height:

35.0 mm

Voltage:

48 V

Operating Temperature:

-40 to 85 °C

Continuous Torque:

450 mNm

Peak Torque:

1.2 Nm

Speed:

5000 rpm

Motor Constant:

135.6 mNm/sqrt(W)

Ready to Be the First to Test Them?

early testing

launch updates

Ready to Be the First to Test Them?

early testing

launch updates

Ready to Be the First to Test Them?

early testing

launch updates

OTHER SIZES WILL ALSO BE AVAILABLE SOON

OUTER DIAMETER RANGE:

From 59.0 to 123.0 mm

MOTOR CONSTANT RANGES:

From 0.155 to 0.95 mNm/sqrt(W)

Have a very special need?

WX MINI Can Be Customized

High-performance engineering often requires more than an off-the-shelf component. That is why we offer custom solutions. Powered by our proprietary WheemX™ Simulation platform, we can quickly and flexibly optimize our motor topologies to match your specific requirements.

Have a very special need?

WX MINI Can Be Customized

High-performance engineering often requires more than an off-the-shelf component. That is why we offer custom solutions. Powered by our proprietary WheemX™ Simulation platform, we can quickly and flexibly optimize our motor topologies to match your specific requirements.

Have a very special need?

WX MINI Can Be Customized

High-performance engineering often requires more than an off-the-shelf component. That is why we offer custom solutions. Powered by our proprietary WheemX™ Simulation platform, we can quickly and flexibly optimize our motor topologies to match your specific requirements.

THE HIGHEST TORQUE DENSITY ON THE MARKET

COMPACT DESIGNS

High torque density for space- and weight-critical applications.

MORE AUTONOMY

Higher efficiency supports longer operating time.

HIGHER PAYLOADS

More torque enables greater load capacity.

GREATER PRECISION

High torque and responsive control enable accurate, stable motion.

FASTER MOTION

High torque supports quicker and more dynamic movement.

LOWER ENERGY USE

Greater efficiency helps reduce power consumption.

SPECIALLY TAILORED FOR ROBOTICS APPLICATIONS

PLUG AND PLAY

Swap it in, plug it in, and you’re back up and running. No rewiring and no tuning marathons. Built to fit your workflow, not to disrupt it.

DIRECT-DRIVE READY

DROP-IN REPLACEMENT

A like-for-like motor upgrade that slides into the exact footprint you already have. Similar mounting, similar shaft alignment, similar interfaces.

LOW AXIAL HEIGHT

THE HIGHEST TORQUE DENSITY ON THE MARKET

COMPACT DESIGNS

High torque density for space- and weight-critical applications.

MORE AUTONOMY

Higher efficiency supports longer operating time.

HIGHER PAYLOADS

More torque enables greater load capacity.

GREATER PRECISION

High torque and responsive control enable accurate, stable motion.

FASTER MOTION

High torque supports quicker and more dynamic movement.

LOWER ENERGY USE

Greater efficiency helps reduce power consumption.

SPECIALLY TAILORED FOR ROBOTICS APPLICATIONS

PLUG AND PLAY

Swap it in, plug it in, and you’re back up and running. No rewiring and no tuning marathons. Built to fit your workflow, not to disrupt it.

DIRECT-DRIVE READY

LOW AXIAL HEIGHT

DROP-IN REPLACEMENT

A like-for-like motor upgrade that slides into the exact footprint you already have. Similar mounting, similar shaft alignment, similar interfaces.

THE HIGHEST TORQUE DENSITY ON THE MARKET

COMPACT DESIGNS

High torque density for space- and weight-critical applications.

MORE AUTONOMY

Higher efficiency supports longer operating time.

HIGHER PAYLOADS

More torque enables greater load capacity.

GREATER PRECISION

High torque and responsive control enable accurate, stable motion.

FASTER MOTION

High torque supports quicker and more dynamic movement.

LOWER ENERGY USE

Greater efficiency helps reduce power consumption.

SPECIALLY TAILORED FOR ROBOTICS APPLICATIONS

PLUG AND PLAY

Swap it in, plug it in, and you’re back up and running. No rewiring and no tuning marathons. Built to fit your workflow, not to disrupt it.

DIRECT-DRIVE READY

LOW AXIAL HEIGHT

DROP-IN REPLACEMENT

A like-for-like motor upgrade that slides into the exact footprint you already have. Similar mounting, similar shaft alignment, similar interfaces.

Central part of an axial flux motor
Our motors are designed and optimized using

WheemX™

Central part of an axial flux motor
Our motors are designed and optimized using

WheemX™

Our motors are designed and optimized using

WheemX™
